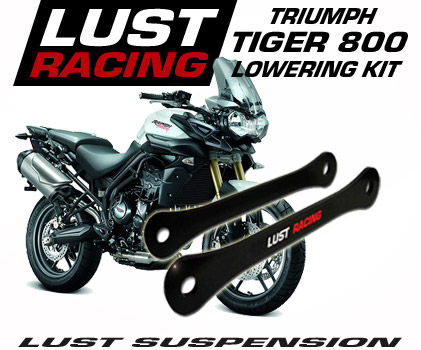

Tiger 800 Suspension Lowering Links
Triumph Tiger 800 lowering kits 2011 to 2019
Suspension lowering links
Triumph Tiger 800 lowering kits by Lust Racing. Lowering your Triumph Tiger 800 is easy with this lowering kit, replace the standard suspension links with
the new Lust Racing lowering links in this kit. We have two kits for the Tiger 800, choose either -30mm or -40mm lowering. The lowering is measured vertically
from the rear axle to the upper part of the seat unit. The seat height lowering at the riders position will therefore be approximately the same as the
specified lowering for each kit.
Lust Racing lowering kits are made in out of roll forged steel and stronger than the standard suspension dogbone links they replace.
Fitting a lowering kit will increase high speed stability and increase rear wheel traction (grip).
As the seat height of the Tiger 800 is fairly high these kits are excellent for short and medium length riders.
No need to tip-toe on the bike. Manufactured in Britain by Lust Racing Ltd.
These suspension brackets are made out of roll forged steel and are stronger than the standard suspension linkage brackets.
Finished in corrosion resistant black powder coating with Lust Racing logos.
The Street Triple lowering kit from Lust Racing comes complete with installation instructions.
Installation by professional takes less than 30 min.
We have also Triumph Tiger 800 lowering kits.
The Lust Racing lowering kits for Triumph Tiger 800 fit bikes manufactured 2011, 2012, 2013, 2014 now also lowering kits for
2015 to 2019 new Tiger XR, XRx and XRt models.
- 2 rear suspension links
- Material forged SS400 high tensile steel
- Laser cut for supreme accuracy
- EDP powder coated in black
- Installation instruction
- Please select the kit of your choice below
| Make | Model | Year | Kit type | Ride Change | Link to Shop |
|---|---|---|---|---|---|
| Triumph | Tiger 800XRx / XRt | 2015-2019 | Lowering kit | 30mm 1.2"inch lowering | Tiger 800XRx lowering kit 30mm 2015-2019 |
| Triumph | Tiger 800XRx / XRt | 2015-2019 | Lowering kit | 40mm 1.6"inch lowering | Tiger 800XRx lowering kit 40mm 2015-2019 |
| Triumph | Tiger 800 XR | 2015-2019 | Lowering kit | 30mm 1.2"inch lowering | Tiger 800XR lowering kit 30mm 2015-2019 |
| Triumph | Tiger 800XR | 2015-2019 | Lowering kit | 40mm 1.6"inch lowering | Tiger 800XR lowering kit 40mm 2015-2019 |
| Triumph | Tiger 800 | year 2011,2012,2013,2014 | Lowering kit | 30mm 1.2"inch lowering | Tiger 800 lowering kit 30mm 2011-2014 |
| Triumph | Tiger 800 | year 2011,2012,2013,2014 | Lowering kit | 40mm 1.6"inch lowering | Tiger 800 lowering kit 40mm 2011-2014 |
We have also lowering kits for Triumph Tiger 800XC XCx XCa:
Tiger 800XC lowering kit
For Triumph Tiger 1050 Lowering kits please see:
Tiger 1050 lowering kit
Daytona Street Triple jack up kit
Daytona 675 jack up kit
for more Lust Racing Triumph lowering kits:
Triumph lowering kits
